BOM / Stückliste / Technische Daten
BOM-Technische Daten-PEDAL-USB/ V1.0-DE
Technische Dokumentation V1.0 DE / Stand: 23.09.2025
Technical data Pedal-USB Breakout / September 19, 2025

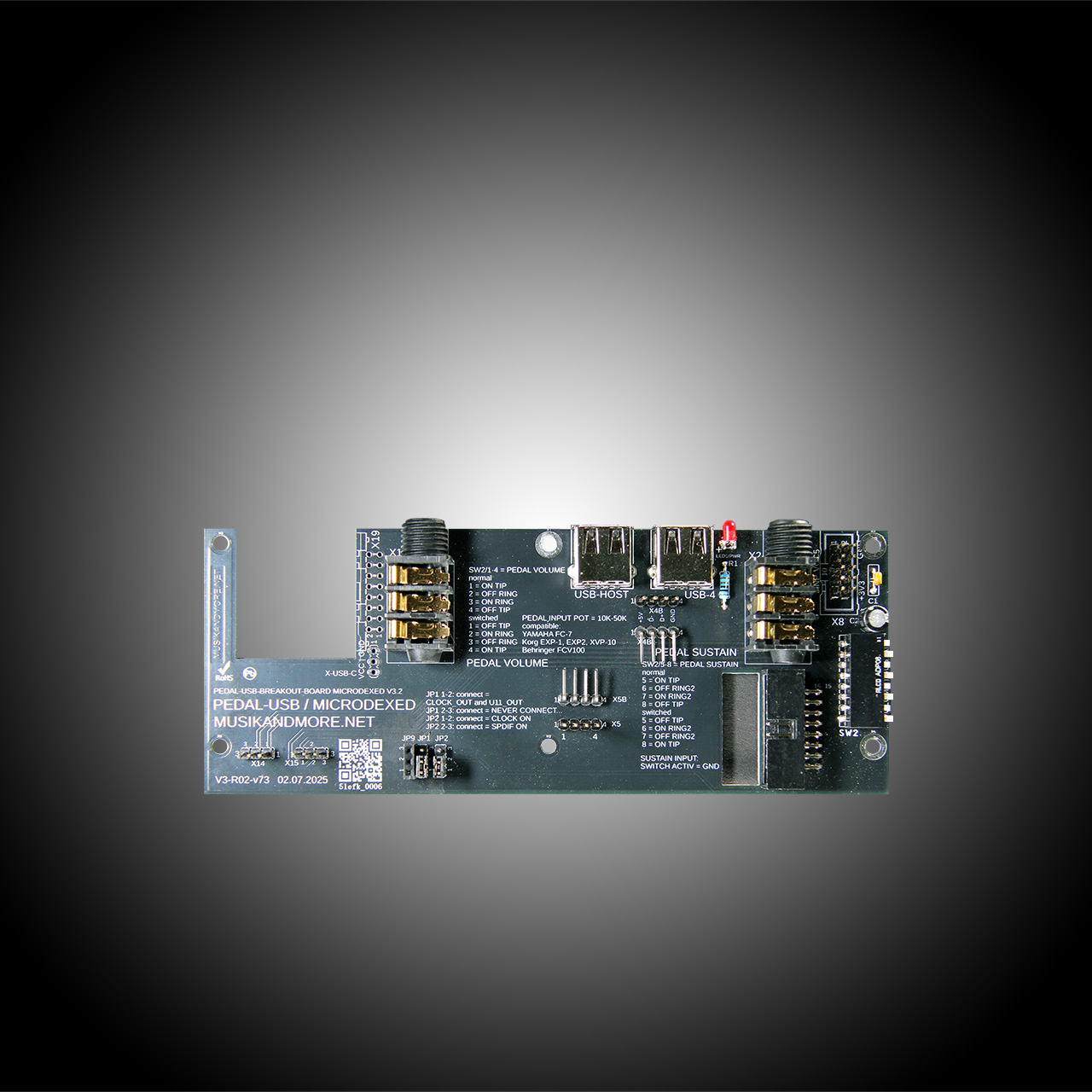

Pedal USB for Microdexed Navipanel Mainboard from V3-R05-v541
| NAVIPANEL V3 Pedal USB | Date: September 19, 2025 | Technical data sheet | ID-(BOM) | X21 PINs |
|---|---|---|---|
| 01) Modularrack 3HE / 32TE / Dimensions (W x L x H) 163x127x33mm | Eurorack | optional… 1*) | |
| 02) 3D printed Desktop Case 3HE / 32TE / Dimensions (W x L x H) 169x134x38mm | Desktop | optional… 1*) | |
| 03) Desktop Alu-Case 4MS pod32 powered / Dimensions (W x L x H) 166x159x40mm | Metal housing | optional… 1*) | |
| 04) power supply ( USB-C Power-Supply Breakout and 4MS 45W Power Brick) | Power-Supply | optional… 1*) | |
| 05) 16-pin box connector with 20cm ribbon cable | for modular (+5V) | Eurorack-Cable | |
| 06) 16-pin box connector with 10cm ribbon cable | for 8TE Eurorack Frontpanel | Eurorack-Cable | 1-16 |
| 06) internal / external supply for USB-Hub | switchable | included | |
| 07) from USB-HOST Hub Port 4, 1x USB-A of which are NOT in the front panel | from active USB hub U6 | U6 (Mainbaord) | |
| 08) 1x USB A connectors on the back via 4-pin connector | USB-A 2.0 | X5B HOST- X4B | |
| 09) alternative CLOCK OUT TRS 3,5mm 0/5V Optocouplers | modular connection | TRS 3,5mm | (5) 2*) |
| 10) PEDAL Volume Input 1/4 inch TRS +3,3V /Signal /GND (Backside) | modular connection | TRS 6,35mm | 6/4 |
| 11) CV IN / alternative 0-5VDC / 0-10VDC Input (protected with suppressor diodes) | modular connection | TRS 6,35mm | 6/4 |
| 12) PEDAL SUSTAIN IN = SUSTAIN 0/+3,3V= LOW/HIGH (Backside) | modular connection | TRS 6,35mm | 12/10 |
| 13) GATE IN = PEDAL SUSTAIN IN 0/+3,3V= LOW/HIGH | modular connection | TRS 6,35mm | 12/10 |
| 14) LED1 5V Power (Backside) | LED 3mm low current RED | LED1 | 14 (VCC +5V) |
| 15) Expansion-Connector 16pol for 8TE Frontpanel with Eurorack compatible | MIDI to CV /Pedals / LEDs | X21 | 1/2/8 (GND) |
| 15) Expansion-Connector 16pol | 3 (AGND) | ||
| 15) Expansion-Connector 16pol | 16 (VDD +12V) | ||
| Note 1*): the technical data apply from motherboard version and the Navipanel V3 Mainboard is necessary! | V3-R05-v541, July 02, 2025 | ||
| Note 2*) only on the smaller pedal / USB PCB version (PEDAL-USB-Breakout-Board) without Midi to CV and Gate OUT | V3-R02-v73, July 02, 2025 |
BOM Part-list for NAVIPANEL Pedal-USB
Pedal / USB /V2-R3-v84 / 21-09-2025
| Part | Value | Detailed Description | Device | Footprint Name |
|---|---|---|---|---|
| C1 | 100nF | CAPACITOR | C5/2.5 | C5B2.5 |
| C2 | 10uF Tantal/16V | Capacitor Polarised - Generic | CAPACITOR-POLRADIAL-5MM-DIA | CAPPRD254W65D500H1150B |
| EURORACK_CABLE | Flatcable_16pol_20cm | Flatcable_16pol_20cm | Flatcable_16pol_20cm | Flatcable_16pol_20cm |
| H1 | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A |
| H2 | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A |
| H3 | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A |
| H4 | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A |
| H5 | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A |
| H6 | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A | STANDOFF_M3X15mm_I/A |
| H30-H35 | 6x_WASHER_DIN125A_3,2mm_for_distance | 6x_WASHER_DIN125A_3,2mm_for_distance | 6x_WASHER_DIN125A_3,2mm_for_distance | 6x_WASHER_DIN125A_3,2mm_for_distance |
| H40-H42 | 3x_NUTS_DIN127_M3_for_Standoff M3x15mm | 3x_NUTS_DIN127_M3_for_Standoff M3x15mm | 3x_NUTS_DIN127_M3_for_Standoff M3x15mm | 3x_NUTS_DIN127_M3_for_Standoff M3x15mm |
| H50-H55 | 6x_SCREWS_M3x5mm_ISO7380-1_V2A | 6x_SCREWS_M3x5mm_ISO7380-1_V2A | 6x_SCREWS_M3x5mm_ISO7380-1_V2A | 6x_SCREWS_M3x5mm_ISO7380-1_V2A |
| JP1 | CLK/SPDIF/OUT | PIN HEADER 1x3pol Jumper | PIN HEADER 1x3pol Jumper | PIN HEADER 1x3pol Jumper |
| JP2 | SW_CKL/SPDIF-OUT | PIN HEADER 1x3pol Jumper | PIN HEADER 1x3pol Jumper | PIN HEADER 1x3pol Jumper |
| JP9 | CLK-SPDIF-OUT | FEMALE HEADER 3pol | FEMALE HEADER 3pol | FEMALE HEADER 3pol |
| JUMPER | JUMPER 2pol. | 2x JUMPER 2pol. | JUMPER 2pol. | JUMPER 2pol. |
| LED1/PWR | 3mm_red_low_current | 3mm_red_low_current | 3mm_red_low_current | 3mm_red_low_current |
| PCB_BREAKOUT | MIDI_TO_CV_V3-R03-v81_19-09-2025 | MIDI_TO_CV_V3-R03-v81_19-09-2028 | MIDI_TO_CV_V3-R03-v81_19-09-2026 | MIDI_TO_CV_V3-R03-v81_19-09-2027 |
| R1 | 1K | RESISTOR, European symbol | R-EU_0207/10 | 0207/10 |
| SW2 | DIP8-SW2-PEDALS | 8-Position DIP Switch | DIP-08-PTH | DIPSWITCH-08 |
| USB-4-CABLE | 1x USB4_Cable_20cm_4pol | 1x USB4_Cable_20cm_4pol | 1x USB4_Cable_20cm_4pol | 1x USB4_Cable_20cm_4pol |
| X-USB-C | PIN2=NC | PIN HEADER 2pol. RM5.08 | MA03-1 | MA03-1 |
| X1 | NRJ6HF-1-AU | Phone Connectors 1/4 JACK STEREO SW SLIM-FULL THREAD NSE" | NRJ6HF-1-AU | NRJ6HF1AU |
| X2 | NRJ6HF-1-AU | Phone Connectors 1/4 JACK STEREO SW SLIM-FULL THREAD NSE" | NRJ6HF-1-AU | NRJ6HF1AU |
| X4A | USB4-A4 | DIP-USB-A-TYPE-FMAL(4+2P-2.0-90D) | DIP-USB-A-TYPE-FMAL(4+2P-2.0-90D) | DIP-USB-A-TYPE-FMAL(4+2P-2.0-90D) |
| X4B | USB4-A4 | LONG PIN HEADER 1x4pol 14mm | LONG PIN HEADER 1x4pol 14mm | LONG PIN HEADER 1x4pol 14mm |
| X4B1 | USB4-A4 | PIN HEADER 1x4pol 90° | PIN HEADER 1x4pol 90° | PIN HEADER 1x4pol 90° |
| X5 | USB-HOST | LONG PIN HEADER 1x4pol 14mm | LONG PIN HEADER 1x4pol 14mm | LONG PIN HEADER 1x4pol 14mm |
| X5A | USB-HOST | DIP-USB-A-TYPE-FMAL(4+2P-2.0-90D) | DIP-USB-A-TYPE-FMAL(4+2P-2.0-90D) | DIP-USB-A-TYPE-FMAL(4+2P-2.0-90D) |
| X5B | USB-HOST | PIN HEADER 1x4pol 90° | PIN HEADER 1x4pol 90° | PIN HEADER 1x4pol 90° |
| X8 | VCC Breakout | LONG PIN HEADER 2x5pol 14mm | LONG PIN HEADER 2x5pol 14mm | LONG PIN HEADER 2x5pol 14mm |
| X14 | SUST-PEDAL | LONG PIN HEADER 1x3pol 14mm | LONG PIN HEADER 1x3pol 14mm | LONG PIN HEADER 1x3pol 14mm |
| X15 | VOL-PEDAL | LONG PIN HEADER 1x3pol 14mm | LONG PIN HEADER 1x3pol 14mm | LONG PIN HEADER 1x3pol 14mm |
| X19 * | EURORACK 90° PWR (*) do not solder X19) | HARTING 16pol. 90° | ML16L | ML16L |
| X21 | Expa.Board 8TE 90° 8TE Frontpanel | HARTING 16pol. 90° | ML16L | ML16L |
