BOM-Technische Daten-MIDI-to-CV PEDAL-USB/ V1.0-DE

BOM / Stückliste / Technische Daten

Technische Dokumentation V1.0 DE / Stand: 23.09.2025

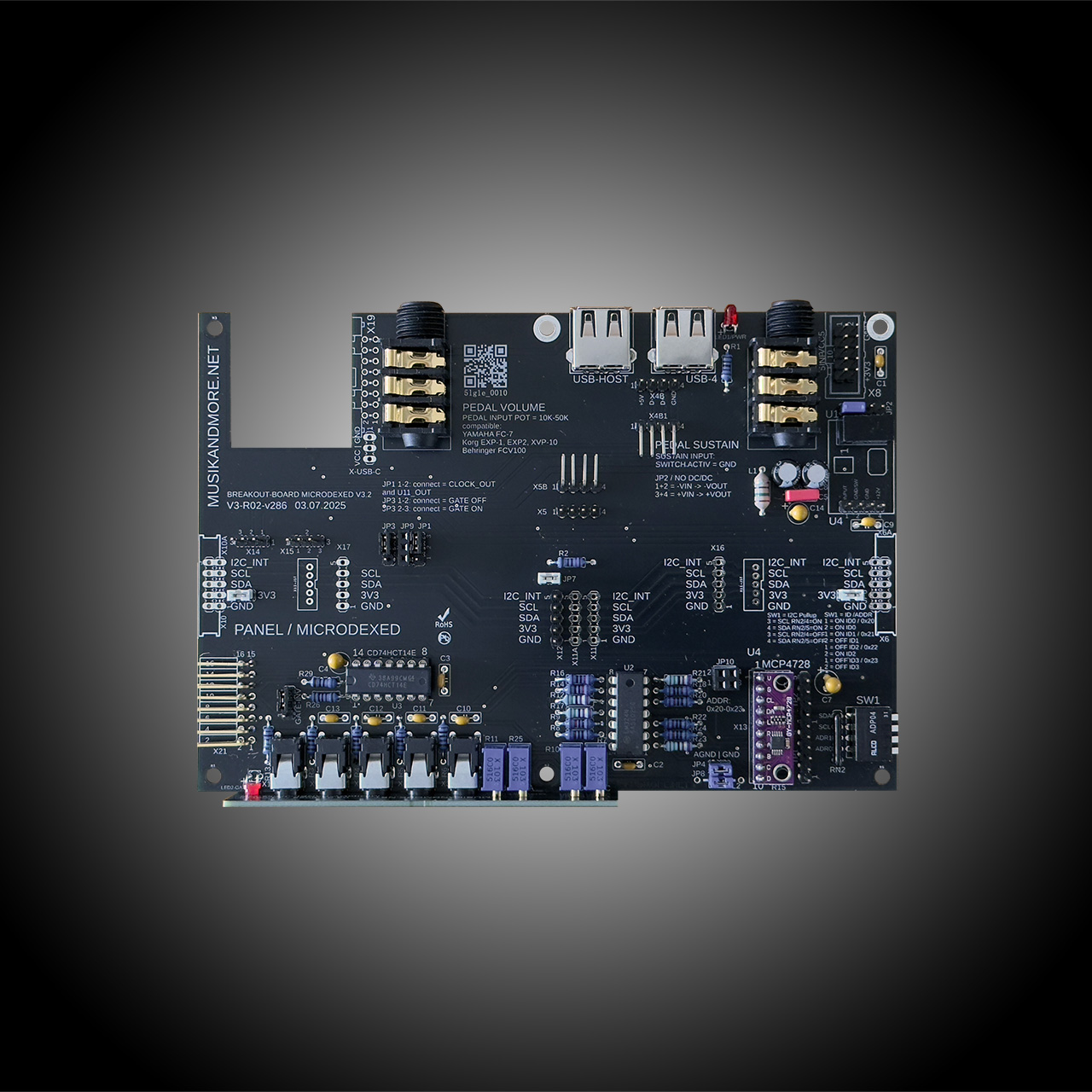

Midi-to-CV-Breakout-7372-40w-Produktfoto

Technical data MIDI to CV Pedal USB Breakout / September 15, 2025

MIDI to CV Pedal USB for Microdexed Navipanel Mainboard from V3-R05-v541

NAVIPANEL V3 MIDI to CV Pedal USB \| Date: September 15, 2025	Technical data sheet	ID-(BOM)	X21 PINs
01) Modularrack 3HE / 32TE / Dimensions (W x L x H) 163x127x33mm	Eurorack	optional… 1*)
02) 3D printed Desktop Case 3HE / 32TE / Dimensions (W x L x H) 169x134x38mm	Desktop	optional… 1*)
03) Desktop Alu-Case 4MS pod32 powered / Dimensions (W x L x H) 166x159x40mm	Metal housing	optional… 1*)
04) power supply ( USB-C Power-Supply Breakout and 4MS 45W Power Brick)	Power-Supply	optional… 1*)
05) 16-pin box connector with 20cm ribbon cable	for modular (+5V)	Eurorack-Cable
06) 16-pin box connector with 10cm ribbon cable	for 8TE Eurorack Frontpanel	Eurorack-Cable	1-16
06) internal / external supply for USB-Hub	switchable	included
07) from USB-HOST Hub Port 4, 1x USB-A of which are NOT in the front panel	from active USB hub U6	U6 (Mainbaord)
08) 1x USB A connectors on the back via 4-pin connector	USB-A 2.0	X5B HOST- X4B
09) DAC Channel 1(A) 0-8VDC = 0-3300 (4095) /TS 3,5mm / 1V/Octave	CV output 1 (NOTE)	TRS 3,5mm	9
10) DAC Channel 2(B) 0-10VDC = 0-3300 (4095) /TS 3,5mm	CV output 2 (MIDI CC)	TRS 3,5mm	11
11) DAC Channel 3(C) 0-10VDC = 0-3300 (4095) /TS 3,5mm	CV output 3 (Velocity	TRS 3,5mm	13
12) DAC Channel 4(D) 0-10VDC = 0-3300 (4095) /TS 3,5mm	CV output 4 (MIDI CC)	TRS 3,5mm	15
13) GATE OUT TRS 3,5mm 0/5V Optocouplers	modular connection	TRS 3,5mm	5
14) alternative CLOCK OUT TRS 3,5mm 0/5V Optocouplers	modular connection	TRS 3,5mm	(5) 2*)
15) PEDAL Volume Input 1/4 inch TRS +3,3V /Signal /GND (Backside)	modular connection	TRS 6,35mm	6/4
17) CV IN / alternative 0-5VDC / 0-10VDC Input (protected with suppressor diodes)	modular connection	TRS 6,35mm	6/4
18) PEDAL SUSTAIN IN = SUSTAIN 0/+3,3V= LOW/HIGH (Backside)	modular connection	TRS 6,35mm	12/10
19) GATE IN = PEDAL SUSTAIN IN 0/+3,3V= LOW/HIGH	modular connection	TRS 6,35mm	12/10
20) LED2 GATE OUT (Frontside)	LED 3mm low current RED	LED2	7
21) LED1 5V Power (Backside)	LED 3mm low current RED	LED1	14 (VCC +5V)
22) Expansion-Connector 16pol for 8TE Frontpanel with Eurorack compatible	MIDI to CV /Pedals / LEDs	X21	1/2/8 (GND)
23) Expansion-Connector 16pol			3 (AGND)
23) Expansion-Connector 16pol			16 (VDD +12V)
Notes:
Note 1*): the technical data apply from motherboard version and the Navipanel V3 Mainboard is necessary!	V3-R05-v541, July 02, 2025
Midi to CV PCB version (Breakout-Board V3.3) with CV and Gate, Pedals and USB-A4	V3-R03-v309, August 21, 2025
Note 2*) only on the smaller pedal / USB PCB version (PEDAL-USB-Breakout-Board) without Midi to CV and Gate OUT	V3-R02-v73, July 02, 2025

BOM Part-list for NAVIPANEL Midi to CV

Pedal / USB / I2C /V3-R3-v323 / 21-09-2025

Part	Value	Detailed Description	Device	Footprint Name
C1	100nF	CAPACITOR	C5/2.5	C5B2.5
C2	100nF	CAPACITOR	C5/2.5	C5B2.5
C3	100nF	CAPACITOR	C5/2.5	C5B2.5
C4	10uF/25V	Capacitor Polarised - Generic	CAPACITOR-POLRADIAL-5MM-DIA	CAPPRD254W65D500H1150B
C5	0,1uF MKS/MKT	CAPACITOR	C5/2.5	C5B2.5
C6	100uF/16V	POLARIZED CAPACITOR, European symbol	CPOL-EUE2,5-6E	E2,5-6E
C7	10uF/16V Tantal	POLARIZED CAPACITOR, European symbol	CPOL-EUE2,5-6E	E2,5-6E
C8	100uF/16V	POLARIZED CAPACITOR, European symbol	CPOL-EUE2,5-6E	E2,5-6E
C9	100nF	CAPACITOR	C5/2.5	C5B2.5
C10	10nF	CAPACITOR	C5/2.5	C5B2.5
C11	10nF	CAPACITOR	C5/2.5	C5B2.5
C12	10nF	CAPACITOR	C5/2.5	C5B2.5
C13	10nF	CAPACITOR	C5/2.5	C5B2.5
C14	10uF/16V Tantal	Capacitor Polarised - Generic	CAPACITOR-POLRADIAL-5MM-DIA	CAPPRD254W65D500H1150B
EURORACK_CABLE	Flatcable_16pol_20cm	Flatcable_16pol_20cm	Flatcable_16pol_20cm	Flatcable_16pol_20cm
GATE-INV	INV/NOINV	PIN HEADER 1x3pol Jumper	PIN HEADER 1x3pol Jumper	PIN HEADER 1x3pol Jumper
H1	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A
H2	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A
H3	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A
H4	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A
H5	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A
H6	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A
H7	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A
H8	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A
H9	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A	STANDOFF_M3X15mm_I/A
H30-H38	9x_WASHER_DIN125A_3,2mm_for_distance	9x_WASHER_DIN125A_3,2mm_for_distance	9x_WASHER_DIN125A_3,2mm_for_distance	9x_WASHER_DIN125A_3,2mm_for_distance
H40-H42	3x_NUTS_DIN127_M3_for_Standoff_M3x15mm	3x_NUTS_DIN127_M3_for_Standoff_M3x15mm	3x_NUTS_DIN127_M3_for_Standoff_M3x15mm	9x_WASHER_DIN125A_3,2mm_for_distance
H50-H58	9x_SCREWS_M3x5mm_ISO7380-1_V2A	9x_SCREWS_M3x5mm_ISO7380-1_V2A	9x_SCREWS_M3x5mm_ISO7380-1_V2A	9x_SCREWS_M3x5mm_ISO7380-1_V2A
JUMPER	JUMPER 2pol.	9x JUMPER 2pol.	JUMPER 2pol.	JUMPER 2pol.
IC-SOCKET_14	2x_IC-socket_14-pin	2x_IC-socket_14-pin	2x_IC-socket_14-pin	2x_IC-socket_14-pin
JP1	CLOCK/GATE_OUT	PIN HEADER 1x3pol 1x Jumper	PIN HEADER 1x3pol Jumper	PIN HEADER 1x3pol Jumper
JP2	NO_DC/DC	PIN HEADER 1x3pol 1x Jumper	PIN HEADER 1x3pol Jumper	PIN HEADER 1x4pol 2xJumper
JP3	GATE ON/OFF	PIN HEADER 1x2pol 1x Jumper	PIN HEADER 1x3pol Jumper	PIN HEADER 1x3pol Jumper
JP4	AGND \| GND	PIN HEADER 1x2pol 1x Jumper	PIN HEADER 1x4pol	PIN HEADER 1x4pol
JP5	I2C 3V3 L	PIN HEADER 1x2pol 1x Jumper	PIN HEADER 1x2pol Jumper	PIN HEADER 1x2pol Jumper
JP6	I2C 3V3 R	PIN HEADER 1x2pol 1x Jumper	PIN HEADER 1x2pol Jumper	PIN HEADER 1x2pol Jumper
JP7	I2C INT	PIN HEADER 1x2pol 1x Jumper	PIN HEADER 1x2pol Jumper	PIN HEADER 1x2pol Jumper
JP8	AGND \| GND	PIN HEADER 1x2pol 1x Jumper	PIN HEADER 1x2pol Jumper	PIN HEADER 1x2pol Jumper
JP9	CLK_OUT	FEMALE HEADER 3pol	FEMALE HEADER 3pol	FEMALE HEADER 3pol
JP10	MCP-23017-I2C ADDRESS 0x20-0x23	FEMALE HEADER 2x2pol IC2 Address 0x20-0x23	FEMALE HEADER 2x2pol	FEMALE HEADER 2x2pol
L1	22uH	Noise /EMI Suppression Filters Inductor Type	BL01RN1A	BL01RN1A
L2 (not used)	22uH (not used)	Noise /EMI Suppression Filters Inductor Type (not used)	BL01RN1A	BL01RN1A
LED1/PWR	3mm_red_low_current	3mm_red_low_current	3mm_red_low_current	3mm_red_low_current
LED2-GATE-OUT	3mm_red_low_current	3mm_red_low_current	3mm_red_low_current	3mm_red_low_current
LOGO1	NO_PB_LOGO	3mm_red_low_current	3mm_red_low_current	3mm_red_low_current
LOGO2	ROHS_LOGO	3mm_red_low_current	3mm_red_low_current	3mm_red_low_current
LOGO3	NO_PB_LOGO	3mm_red_low_current	3mm_red_low_current	3mm_red_low_current
LOGO4	ROHS_LOGO	3mm_red_low_current	3mm_red_low_current	3mm_red_low_current
PCB_MIDItoCV	PANEL-Jacks-v26-03-07-2025	PANEL-Jacks-v26-03-07-2025	PANEL-Jacks-v26-03-07-2025	PANEL-Jacks-v26-03-07-2025
PCB_BREAKOUT	MIDI_TO_CV_V3-R03-v309-21-08-2025	MIDI_TO_CV_V3-R03-v309-21-08-2025	MIDI_TO_CV_V3-R03-v309-21-08-2025	MIDI_TO_CV_V3-R03-v309-21-08-2025
R1	1K	RESISTOR, European symbol	R-EU_0207/10	0207/10
R2	2K7	RESISTOR, European symbol	R-EU_0207/10	0207/10
R3	1K	RESISTOR, European symbol	R-EU_0207/10	0207/10
R4	1K	RESISTOR, European symbol	R-EU_0207/10	0207/10
R5	1K	RESISTOR, European symbol	R-EU_0207/10	0207/10
R6	1K	RESISTOR, European symbol	R-EU_0207/10	0207/10
R7	10K	3296X-1-103LF Bourns 3/8" 10K Potentiometer	3296X-1-103LF	3296X-1-103LF
R8	1K0 / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R9	10K / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R10	10K	3296X-1-103LF Bourns 3/8" 10K Potentiometer	3296X-1-103LF	3296X-1-103LF
R11	10K	3296X-1-103LF Bourns 3/8" 10K Potentiometer	3296X-1-103LF	3296X-1-103LF
R12	13K7 / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R13	1K	RESISTOR, European symbol	R-EU_0207/10	0207/10
R14	1K0 / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R15	2K7	RESISTOR, European symbol	R-EU_0207/10	0207/10
R16	10K / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R17	13K7 / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R18	1K0 / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R20	10K / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R21	13K7 / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R22	0R	RESISTOR, European symbol	R-EU_0207/10	0207/10
R23	13K7 / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R24	10K / 0,1%	RESISTOR, European symbol	R-EU_0207/10	0207/10
R25	10K	3296X-1-103LF Bourns 3/8" 10K Potentiometer	3296X-1-103LF	3296X-1-103LF
R26	10K	RESISTOR, European symbol	R-EU_0207/10	0207/10
R29	680R	RESISTOR, European symbol	R-EU_0207/10	0207/10
RN2	4K7	SIL RESISTOR 5-pin	G04R	SIL5
SW1	I2C-ADDR	DIP SWITCH 4 small Version	SW_DIP-4	EDG-04
TP1	Testpoint DAC CH.A-D	PIN HEADER 1x5pol	PIN HEADER 1x5pol	PIN HEADER 1x5pol
TP2	Testpoint 12V/5V/3V3/AGND/GND	PIN HEADER	MA05-1	MA05-1
U1	TRACO TBA1-0512	DC/DC CONVERTER 12V 1W	RO-0512S	RO-0512S
U2	LM324	Quad Op Amp 4,7V to 12.0V Single Supply CMOS	LM324N	DIL14
U3	CD74HCT14E	Hex schmitt trigger Inverter	74HC14N	DIL14
U4	DC/DC 5V/12V	DC/DC CONVERTER 5V-12V 1W	DC/DC 5V/12V	DC/DC 5V/12V
U5	GY-MCP4728-4Ch_12Bit_DAC	MCP4728 4x12Bit DAC VCC 3V3 - 5V	GY-MCP4728-4Ch_12Bit_DAC	GY-MCP4728-4Ch_12Bit_DAC
USB-4-CABLE	1x USB4_Cable_20cm_4pol	1x USB4_Cable_20cm_4pol	1x USB4_Cable_20cm_4pol	1x USB4_Cable_20cm_4pol
X-USB-C	PIN2=NC	PIN HEADER 2pol. RM5.08	MA03-1	MA03-1
X1	NRJ6HF-1-AU	Phone Connectors 1/4 JACK STEREO SW SLIM-FULL THREAD NSE	NRJ6HF-1-AU	NRJ6HF1AU
X2	NRJ6HF-1-AU	Phone Connectors 1/4 JACK STEREO SW SLIM-FULL THREAD NSE	NRJ6HF-1-AU	NRJ6HF1AU
X3	1503_08	Jack connectors according to JISC 6560, 3.5 mm	1503_08 Lumberg	1503_08
X4	1503_08	Jack connectors according to JISC 6560, 3.5 mm	1503_08 Lumberg	1503_08
X4A	USB4-A4	DIP-USB-A-TYPE-FMAL(4+2P-2.0-90D)	DIP-USB-A-TYPE-FMAL(4+2P-2.0-90D)	USB4+2P-2.0-90D
X4B	USB4-A4	LONG PIN HEADER 1x4pol 14mm	LONG PIN HEADER 1x4pol 14mm	LONG PIN HEADER 1x4pol 14mm
X4B1	USB4-A4	PIN HEADER 1x4pol 90°	PIN HEADER 1x4pol 90°	PIN HEADER 1x4pol 90°
X5	USB-HOST	LONG PIN HEADER 1x4pol 14mm	LONG PIN HEADER 1x4pol 14mm	LONG PIN HEADER 1x4pol 14mm
X5A	USB-HOST	DIP-USB-A-TYPE-FMAL(4+2P-2.0-90D)	DIP-USB-A-TYPE-FMAL(4+2P-2.0-90D)	USB4+2P-2.0-90D
X5B	USB-HOST	PIN HEADER 1x4pol 90°	PIN HEADER 1x4pol 90°	PIN HEADER 1x4pol 90°
X6	I2C-R-POGO	PIN HEADER 1x5pol	MA05-1	MA05-1
X6A	I2C-R-POGO	PIN HEADER 1x5pol	MA05-1	MA05-1
X7	1503_08	Jack connectors according to JISC 6560, 3.5 mm	1503_08 Lumberg	1503_08
X8	VCC Breakout	LONG PIN HEADER 2x5pol 14mm	LONG PIN HEADER 2x5pol 14mm	LONG PIN HEADER 2x5pol 14mm
X9	1503_08	Jack connectors according to JISC 6560, 3.5 mm	1503_08 Lumberg	1503_08
X10	I2C-L-POGO	PIN HEADER 1x5pol	PIN HEADER 1x5pol	PIN HEADER 1x5pol
X10A	I2C-L-POGO	PIN HEADER 1x5pol	PIN HEADER 1x5pol	PIN HEADER 1x5pol
X11	I2C-R	PIN HEADER 1x5pol	PIN HEADER 1x5pol	PIN HEADER 1x5pol
X11-JST	I2C-R-JST	JST Header-pin footprint for 0.1 inch spaced/style header connections	CONN_05JST-VERT	JST-5-PTH-VERT
X11A	I2C-C	PIN HEADER 1x5pol	PIN HEADER 1x5pol	PIN HEADER 1x5pol
X12	I2C-L	LONG PIN HEADER 1x5pol 14mm	LONG PIN HEADER 1x5pol 14mm	LONG PIN HEADER 1x5pol 14mm
X12-JST	I2C-L-JST	JST Header-pin footprint for 0.1 inch spaced/style header connections	CONN_05JST-VERT	JST-5-PTH-VERT
X13	GY-MCP4728	LOW PROFILE FEMALE HEADER 10pol	LOW PROFILE FEMALE HEADER 10pol	LOW PROFILE FEMALE HEADER 10pol
X14	SUST-PEDAL	LONG PIN HEADER 1x3pol 14mm	LONG PIN HEADER 1x3pol 14mm	LONG PIN HEADER 1x3pol 14mm
X15	VOL-PEDAL	LONG PIN HEADER 1x3pol 14mm	LONG PIN HEADER 1x3pol 14mm	LONG PIN HEADER 1x3pol 14mm
X16	I2C-R2	PIN HEADER 1x5pol	PIN HEADER 1x5pol	PIN HEADER 1x5pol
X17	I2C-L2	PIN HEADER 1x5pol	PIN HEADER 1x5pol	PIN HEADER 1x5pol
X18	1503_08	Jack connectors according to JISC 6560, 3.5 mm	1503_08 Lumberg	1503_08
X19	EURORACK 16Pin	HARTING	ML16L	ML16L
X21	16pol 90° Pins	PIN HEADER 2x8pol. 90°	FE08-2W	FE08-2W
