BOM / Stückliste / Technische Daten
BOM-Technische Daten-8TE-Frontpanel MIDI-to-CV-PEDAL-USB/ V1.0-DE
Technische Dokumentation V1.0 DE / Stand: 23.09.2025
Technical data 8TE-Frontpanel-Midi-to-CV-Pedal-USB / September 22, 2025

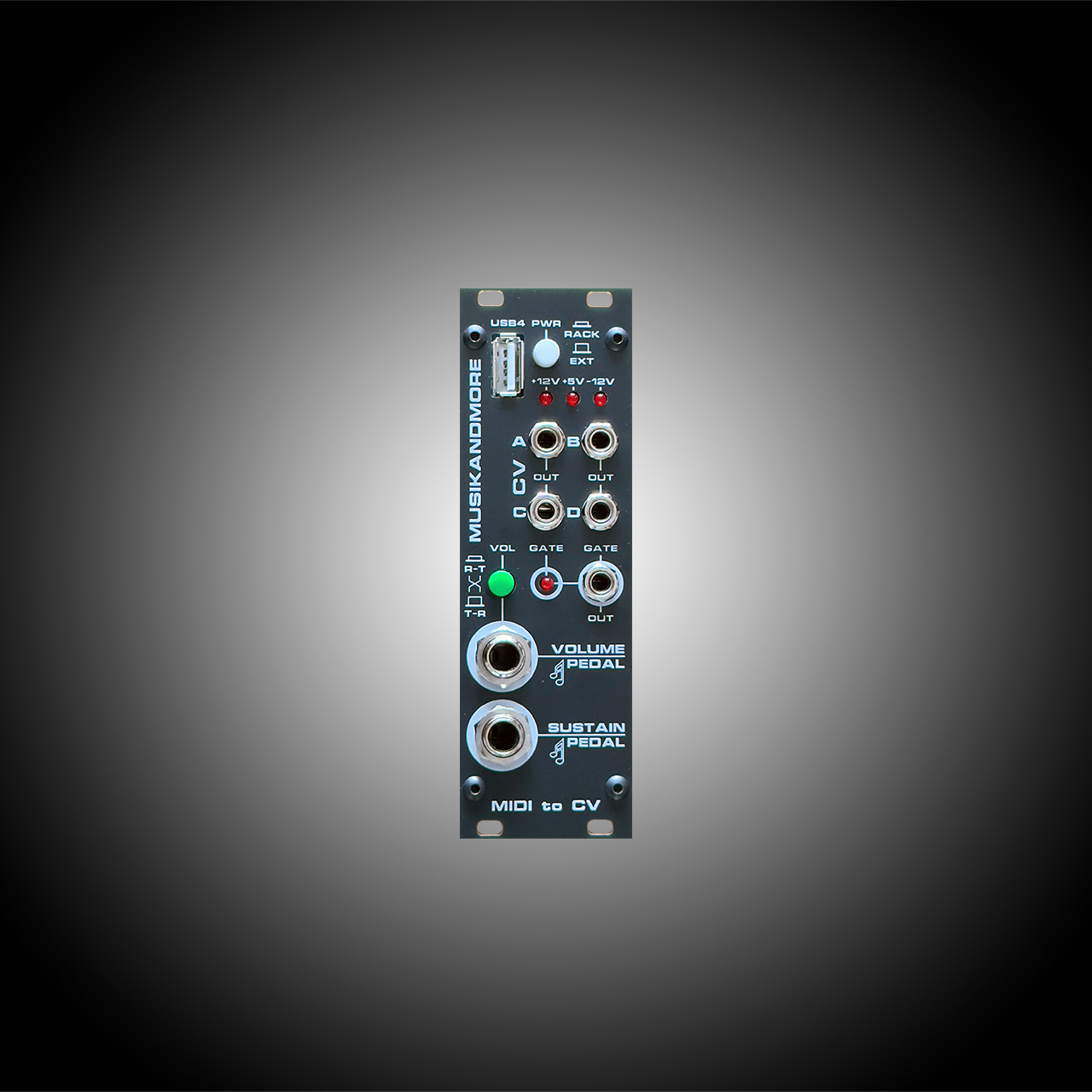

8TE Frontpanel for Midi to CV / Pedal USB / Navipanel Mainboard from V3-R05-v541
| 8TE Frontpanel for Midi to CV / Pedal USB / Date: September 22, 2025 | Technical data sheet | ID-(BOM) | X1/X1W PINs |
|---|---|---|---|
| 01) Modularrack 3HE / 40TE / Dimensions (W x L x H) 206x127x33mm | Eurorack | optional… 1*) | |
| 02) Desktop Eurorack Behringer 104TE / Dimensions (W x L x H) 546x133x84mm | Metal housing | optional… 1*) | |
| 03) Desktop Alu-Case 4MS pod40 powered / Dimensions (W x L x H) 206x159x40mm | Metal housing | optional… 1*) | |
| 04) power supply ( USB-C Power-Supply Breakout and 4MS 45W Power Brick) | Power-Supply | optional… 1*) | |
| 05) 16-pin box connector with 20cm ribbon cable | for modular (+5V) | Eurorack-Cable | |
| 06) 16-pin box connector with 10cm ribbon cable | for 8TE Eurorack Frontpanel | Eurorack-Cable | 1-16 |
| 07) internal / external supply for USB-Hub | switchable | included | |
| 08) from USB-HOST Hub Port 4, 1x USB-A of which are NOT in the front panel | from active USB hub U6 | U6 (Mainbaord) | |
| 09) 1x USB A connectors on the back via 4-pin connector | USB-A 2.0 | X5B HOST- X4B | |
| 10) 1x S1 Switch Eurorack-Power LEDs WHITE | S1 Switch Eurorack PWR | S1 Switch | |
| 11) 1x S2 Switch Polarized for Volume TR /RT GREEN | S2 Switch Polarized | S2 Switch | |
| 12) DAC Channel 1(A) 0-8VDC = 0-3300 (4095) /TS 3,5mm / 1V/Octave | CV output 1 (NOTE) | TRS 3,5mm | 9 |
| 13) DAC Channel 2(B) 0-10VDC = 0-3300 (4095) /TS 3,5mm | CV output 2 (MIDI CC) | TRS 3,5mm | 11 |
| 14) DAC Channel 3(C) 0-10VDC = 0-3300 (4095) /TS 3,5mm | CV output 3 (Velocity | TRS 3,5mm | 13 |
| 15) DAC Channel 4(D) 0-10VDC = 0-3300 (4095) /TS 3,5mm | CV output 4 (MIDI CC) | TRS 3,5mm | 15 |
| 16) GATE OUT TRS 3,5mm 0/5V Optocouplers | modular connection | TRS 3,5mm | 5 |
| 17) PEDAL Volume Input 1/4 inch TRS +3,3V /Signal /GND (Amphenol Conn.) | modular connection | TRS 6,35mm | 6/4 |
| 18) CV IN / alternative 0-5VDC / 0-10VDC Input (protected with suppressor diodes) | modular connection | TRS 6,35mm | 6/4 |
| 19) PEDAL SUSTAIN IN = SUSTAIN 0/+3,3V= LOW/HIGH (Amphenol Conn.) | modular connection | TRS 6,35mm | 12/10 |
| 20) LED2 GATE OUT (Frontpanel) | LED 3mm low current RED | LED2 | 7 |
| 21) LED1 5V Power | LED 3mm low current RED | LED1 | 14 (VCC +5V) |
| 22) LED3 +12V Eurorack-Power | LED 3mm low current RED | LED3 | |
| 23) LED4 -12V Eurorack-Power | LED 3mm low current RED | LED4 | |
| 24) NOT USED Expansion-Connector 16pol for 8TE Frontpanel with 90° 2x8pol. | MIDI to CV /Pedals / LEDs | X1W | 1/2/8 (GND) |
| 25) Expansion-Connector 16pol for 8TE Frontpanel with Eurorack compatible | MIDI to CV /Pedals / LEDs | X1 | 1/2/8 (GND) |
| 25) Expansion-Connector 16pol | X1/X1W | 3 (AGND) | |
| 25) Expansion-Connector 16pol | X1/X1W | 16 (VDD +12V) | |
| Note 1*): the technical data apply from motherboard version and the Navipanel V3 Mainboard is necessary! Used Eurorack min. 40TE/3HE | V3-R05-v541, July 02, 2025 | ||
| Midi to CV PCB version (Breakout-Board V3.3) with CV and Gate, Pedals and USB-A4 | V3-R03-v309, August 21, 2025 | ||
| Note 2*) only on the smaller pedal / USB PCB version (PEDAL-USB-Breakout-Board) without Midi to CV and Gate OUT | V3-R02-v73, July 02, 2025 |
BOM Part-list for NAVIPANEL 8TE-Frontpanel-Midi-to-CV-Pedal-USB
Midi to CV / Pedal / USB /V2-R02-v84 / 22-09-2025
| Part | Value | Detailed Description | Device | Footprint Name |
|---|---|---|---|---|
| C2 | 100nF | CAPACITOR | C5/2.5 | C5B2.5 |
| CV-OUT-A | WQP518MA-MONO | Black Thonkiconn Mono 3.5mm Audio Jacks | WQP518MA-MONO | WQP-PJ366-ST_JACK |
| CV-OUT-B | WQP518MA-MONO | Black Thonkiconn Mono 3.5mm Audio Jacks | WQP518MA-MONO | WQP-PJ366-ST_JACK |
| CV-OUT-C | WQP518MA-MONO | Black Thonkiconn Mono 3.5mm Audio Jacks | WQP518MA-MONO | WQP-PJ366-ST_JACK |
| CV-OUT-D | WQP518MA-MONO | Black Thonkiconn Mono 3.5mm Audio Jacks | WQP518MA-MONO | WQP-PJ366-ST_JACK |
| EURORACK_CABLE | Flatcable_16pol_20cm | Flatcable_16pol_20cm | Flatcable_16pol_20cm | Flatcable_16pol_20cm |
| GATE-OUT | WQP518MA-MONO | Black Thonkiconn Mono 3.5mm Audio Jacks | WQP518MA-MONO | WQP-PJ366-ST_JACK |
| H1 | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A |
| H2 | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A |
| H3 | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A |
| H4 | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A | STANDOFF_M3X11mm_I/I_V2A |
| H5 | STANDOFF_M3X12mm_I/A_brass | STANDOFF_M3X12mm_I/A_brass | STANDOFF_M3X12mm_I/A_brass | STANDOFF_M3X12mm_I/A_brass |
| H30-H31 | 2x_WASHER_DIN125A_3,2mm_for_distance | 2x_WASHER_DIN125A_3,2mm_for_distance | 2x_WASHER_DIN125A_3,2mm_for_distance | 2x_WASHER_DIN125A_3,2mm_for_distance |
| H40- | 1x_NUTS_DIN127_M3_for_Standoff_M3x15mm | 1x_NUTS_DIN127_M3_for_Standoff_M3x15mm | 1x_NUTS_DIN127_M3_for_Standoff_M3x15mm | 1x_NUTS_DIN127_M3_for_Standoff_M3x15mm |
| H50-H54 | 5x_SCREWS_M3x5mm_ISO7380-1_V2A | 5x_SCREWS_M3x5mm_ISO7380-1_V2A | 5x_SCREWS_M3x5mm_ISO7380-1_V2A | 5x_SCREWS_M3x5mm_ISO7380-1_V2A |
| JUMPER | JUMPER 2pol. | JUMPER 2pol. | JUMPER 2pol. | JUMPER 2pol. |
| LED1 | LED1/+5V | 3mm_red_low_current | LED_ELD260 | LED_LD260 |
| LED2-GATE-OUT | LED2-GATE-OUT | 3mm_red_low_current | LED_ELD260 | LED_LD260 |
| LED3 | LED3/+12V | 3mm_red_low_current | LED_ELD260 | LED_LD260 |
| LED4 | LED4/-12V | 3mm_red_low_current | LED_ELD260 | LED_LD260 |
| LED1-4_STANDOFF | 4x_LED3mm-STANDOFF_d5x9mm | 4x_LED3mm-STANDOFF_d5x9mm (000183421) | 4x_LED3mm-STANDOFF_d5x9mm | 4x_LED3mm-STANDOFF_d5x9mm |
| PCB_BREAKOUT | 8TE-Midi-to-CV-Pedal-USB_V3-R02-v76_02-07-2025 | 8TE-Midi-to-CV-Pedal-USB_V3-R02-v76_02-07-2025 | 8TE-Midi-to-CV-Pedal-USB_V3-R02-v76_02-07-2025 | 8TE-Midi-to-CV-Pedal-USB_V3-R02-v76_02-07-2025 |
| PCB_BREAKOUT1 | Amphenol-TRS-6-35-Breakout-v46_20-08-2025 | Amphenol-TRS-6-35-Breakout-v46_20-08-2025 | Amphenol-TRS-6-35-Breakout-v46_20-08-2025 | Amphenol-TRS-6-35-Breakout-v46_20-08-2025 |
| PCB_BREAKOUT3 | 8TE-Frontpanel-Midi-to-CV_V1-v11_21-05-2025 | 8TE-Frontpanel-Midi-to-CV_V1-v11_21-05-2025 | 8TE-Frontpanel-Midi-to-CV_V1-v11_21-05-2025 | 8TE-Frontpanel-Midi-to-CV_V1-v11_21-05-2025 |
| R1 | 680R | RESISTOR, European symbol | R-EU_0207/10 | 0207/10 |
| R2 | 680R | RESISTOR, European symbol | R-EU_0207/10 | 0207/10 |
| R3 | 1K8 | RESISTOR, European symbol | R-EU_0207/10 | 0207/10 |
| R4 | 1K8 | RESISTOR, European symbol | R-EU_0207/10 | 0207/10 |
| S1 | PWR Eurorack / DPDT Latching Push Button WHITE | DPDT Latching Push Button WHITE thonk.co.uk | DPDT Latching Push Button WHITE | 9077-2 |
| S2 | Polarzid Volume/DPDT Latching Push Button GREEN | DPDT Latching Push Button GREEN thonk.co.uk | DPDT Latching Push Button GREEN | 9077-2 |
| TRS-SUSTAIN | 1x Amphenol-TRS-6.35mm_Jacks-vertikal | 1x Amphenol-TRS-6.35mm_Jacks-vertikal ASJS-MV-3 | 1x Amphenol-TRS-6.35mm_Jacks-vertikal | 1x Amphenol-TRS-6.35mm_Jacks-vertikal |
| TRS-VOLUME | 1x Amphenol-TRS-6.35mm_Jacks-vertikal | 1x Amphenol-TRS-6.35mm_Jacks-vertikal ASJS-MV-3 | 1x Amphenol-TRS-6.35mm_Jacks-vertikal | 1x Amphenol-TRS-6.35mm_Jacks-vertikal |
| USB-4-CABLE | 1x USB4_Cable_20cm_4pol | 1x USB4_Cable_20cm_4pol | 1x USB4_Cable_20cm_4pol | 1x USB4_Cable_20cm_4pol |
| X1 | Expa.Board 8TE | HARTING | ML16 | ML16 |
| X1W not used | Expa.Board 8TE not used | PIN HEADER 2x 8pol 90° not used | MA08-2W | MA08-2W |
| X2 | EURORACK_IN | HARTING | ML16 | ML16 |
| X3 | Vertical,Top Entry USB Connector KUSBVX Series | Vertical,Top Entry USB Connector KUSBVX Series | KUSBVX | KUSBVX |
| X4B | USB-4 | PIN HEADER 1x4pol | PIN HEADER 1x4pol | PIN HEADER 1x4pol |
| X5 | EURORACK POWER | PIN HEADER 1x4pol | PIN HEADER 1x4pol | PIN HEADER 1x4pol |
| X6 | EURORACK GATE/CV | PIN HEADER 1x3pol | PIN HEADER 1x3pol | PIN HEADER 1x3pol |
| X7 | TRS-Breakout FEMALE 6pol | FEMALE HEADER 6pol | FEMALE HEADER 6pol | FEMALE HEADER 6pol |
| TRS-X8 | 1x Pin-Header 6pol for TRS Breakout | 1x Pin-Header 6pol for TRS Breakout | 1x Pin-Header 6pol | 1x Pin-Header 6pol |
